Self-Hosted Installation for Embedded Cluster

• The AI Security Platform: Self-Hosted/Air-Gapped can also be deployed on a Bring Your Own Kubernetes cluster using Helm.

​

Before You Begin

​

Prepare the Hosts

• This section provides information gathered from verified installations.
• This section does not provide guidance for every operating system.
• Some information in this section is for specific operating systems. When applicable, those operating systems are identified.

​

Baseline

cat /etc/os-release | head -2
uname -r
nproc
free -h
df -h /

NAME="Red Hat Enterprise Linux"
VERSION="9.8 (Plow)"
5.14.0-687.15.1.el9_8.x86_64
16
               total        used        free      shared  buff/cache   available
Mem:           123Gi       5.4Gi        46Gi       156Mi        73Gi       118Gi
Swap:             0B          0B          0B
Filesystem      Size  Used Avail Use% Mounted on
/dev/nvme0n1p4  199G   77G  123G  39% /

​

Hostname

hostnamectl hostname <short-name>

hostname
hostname | wc -c

ip-10-2-151-147.ec2.internal
29

​

Clock

timedatectl

• System clock synchronized: yes
• NTP service: active

               Local time: Fri 2026-09-11 14:11:05 UTC
           Universal time: Fri 2026-09-11 14:11:05 UTC
                 RTC time: Fri 2026-09-11 14:11:04
                Time zone: UTC (UTC, +0000)
System clock synchronized: yes
              NTP service: active

​

Prepare the GPU Node for RHEL

• Do not update the kernel first. The driver install pulls the matching kernel.
• Do not create /etc/k0s/containerd.d/nri.toml or cdi.toml.
• For Deep Learning AMI, no modifications are required. The driver is pre-baked. Choose the Base variant.
  dnf install -y dnf-plugins-core
  RHELMAJ=$(. /etc/os-release; echo "$VERSION_ID" | cut -d. -f1)
  dnf config-manager --add-repo \
    https://developer.download.nvidia.com/compute/cuda/repos/rhel$RHELMAJ/x86_64/cuda-rhel$RHELMAJ.repo
  dnf clean expire-cache

  # a precompiled kmod must exist for THIS kernel — `dnf list` exits 0 and hides it
  dnf repoquery --disable-modular-filtering --disablerepo='*' \
    --enablerepo="cuda-rhel$RHELMAJ-x86_64" 'kmod-nvidia*' | grep -v dkms \
    | grep "$(uname -r | cut -d- -f2 | cut -d. -f4)"
  # nothing returned? try nvidia-driver:570 below. never :latest, never -open.

  dnf module reset -y nvidia-driver
  dnf module enable -y nvidia-driver:580
  dnf install -y nvidia-driver nvidia-driver-cuda

• Reboot
  reboot

• Verify
  # verify all four — nvidia-smi alone passes without the precompiled module
  uname -r && rpm -qa | grep kmod-nvidia && lsmod | grep -c nvidia && nvidia-smi


​

Install Admin Console

• Admin Console
• A controller node

• Add new nodes
• Edit the platform configuration
• Use the troubleshooting feature to collect logs, resources, and other data to send to HiddenLayer for support

• Every command runs as root sudo -i first, or prefix each command.
• Anything in <angle brackets> is a value you must supply. Pasting commands as-is, the shell treats it as a redirect.

​

Step 1: Download and Extract the Bundle

1. Open a terminal and download the bundle.
   • Replace <License ID> with your HiddenLayer AI Security Platform License.
   curl -f "https://updates.hiddenlayer.ai/embedded/aisec-platform/stable?airgap=true" \
     -H "Authorization: <License ID>" -o aisec-platform-stable.tgz

2. Extract the bundle contents.
   • The following command yields the aisec-platform binary, the aisec-platform.airgap bundle, and the license.yaml. Neither command needs sudo.
   tar -xvzf aisec-platform-stable.tgz


​

Step 2: Install the Admin Console

1. Install the Self-Hosted Admin Console and follow the on-screen instructions.
   • This command runs as root sudo -i first, or prefix the command.
   ./aisec-platform install --license license.yaml --airgap-bundle aisec-platform.airgap

2. Set the Admin Console password. This password will be used to login to the Admin Console in the next step.
   • After you set the password, an IP address displays; this is for the Admin Console and is used in the next section.
   • This password is for the Admin Console login, not the AI Security Platform Console login.
   • You will create the AI Security Platform Console login later in this configuration.
3. Navigate to the outputted URL for the Admin Console. Example URL: http://10.2.151.147:30000

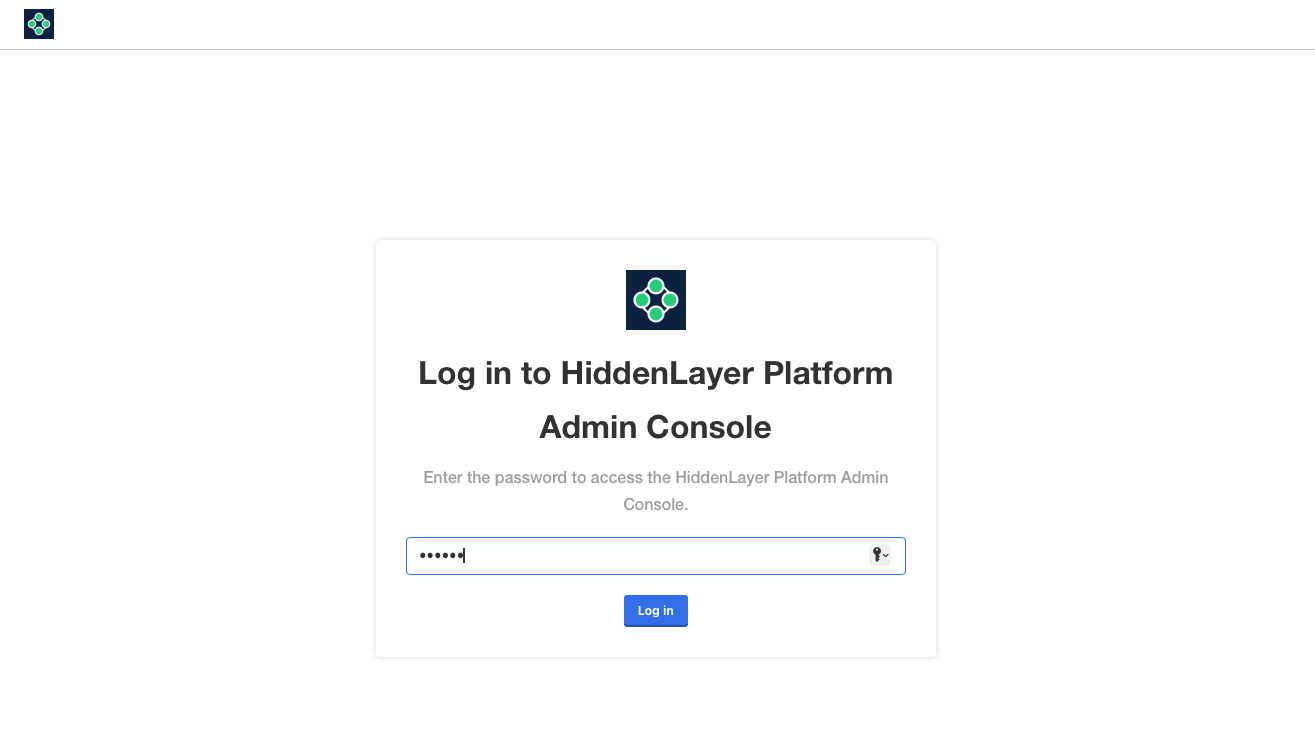

4. Log in to the Admin Console using the password you created.

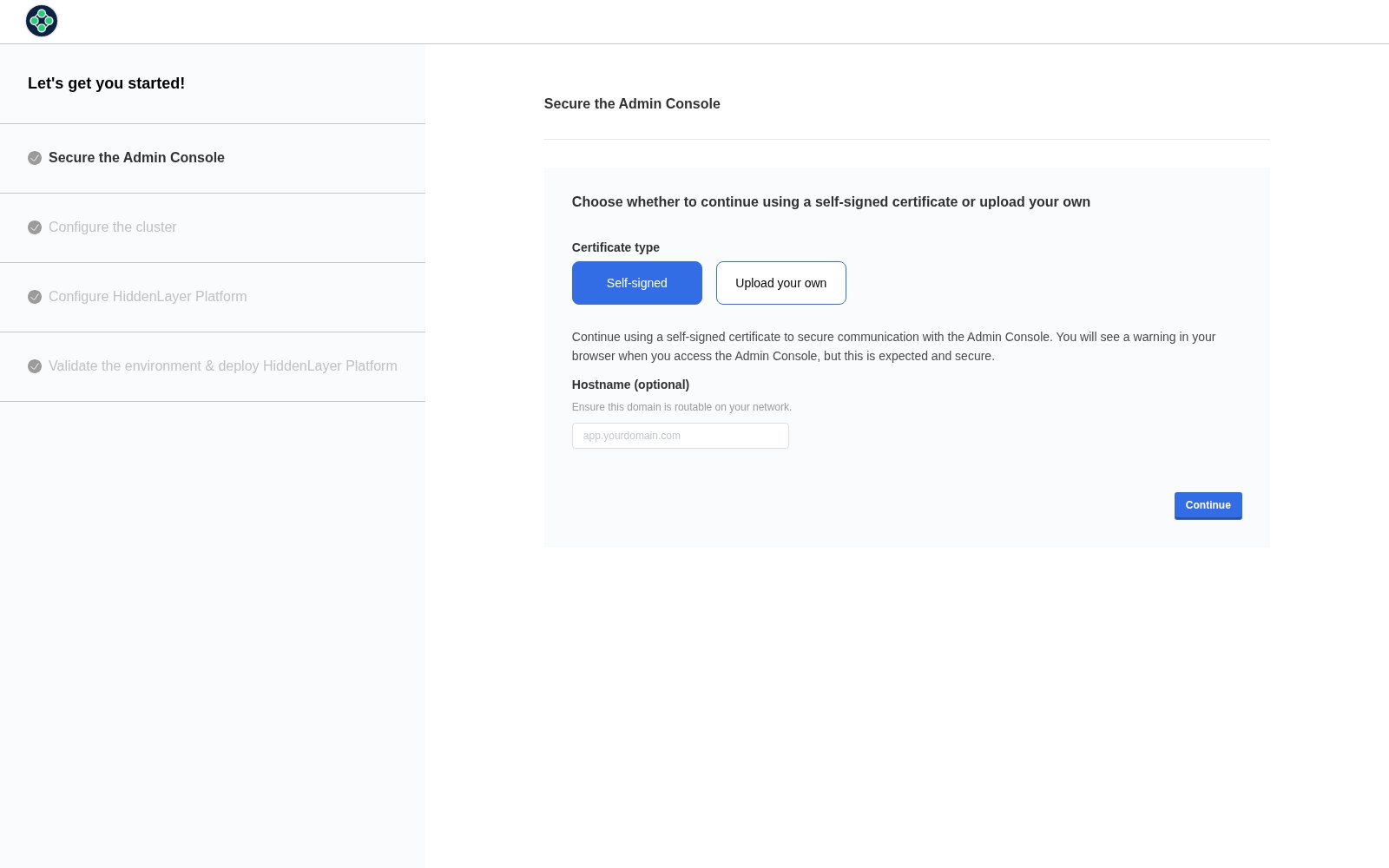

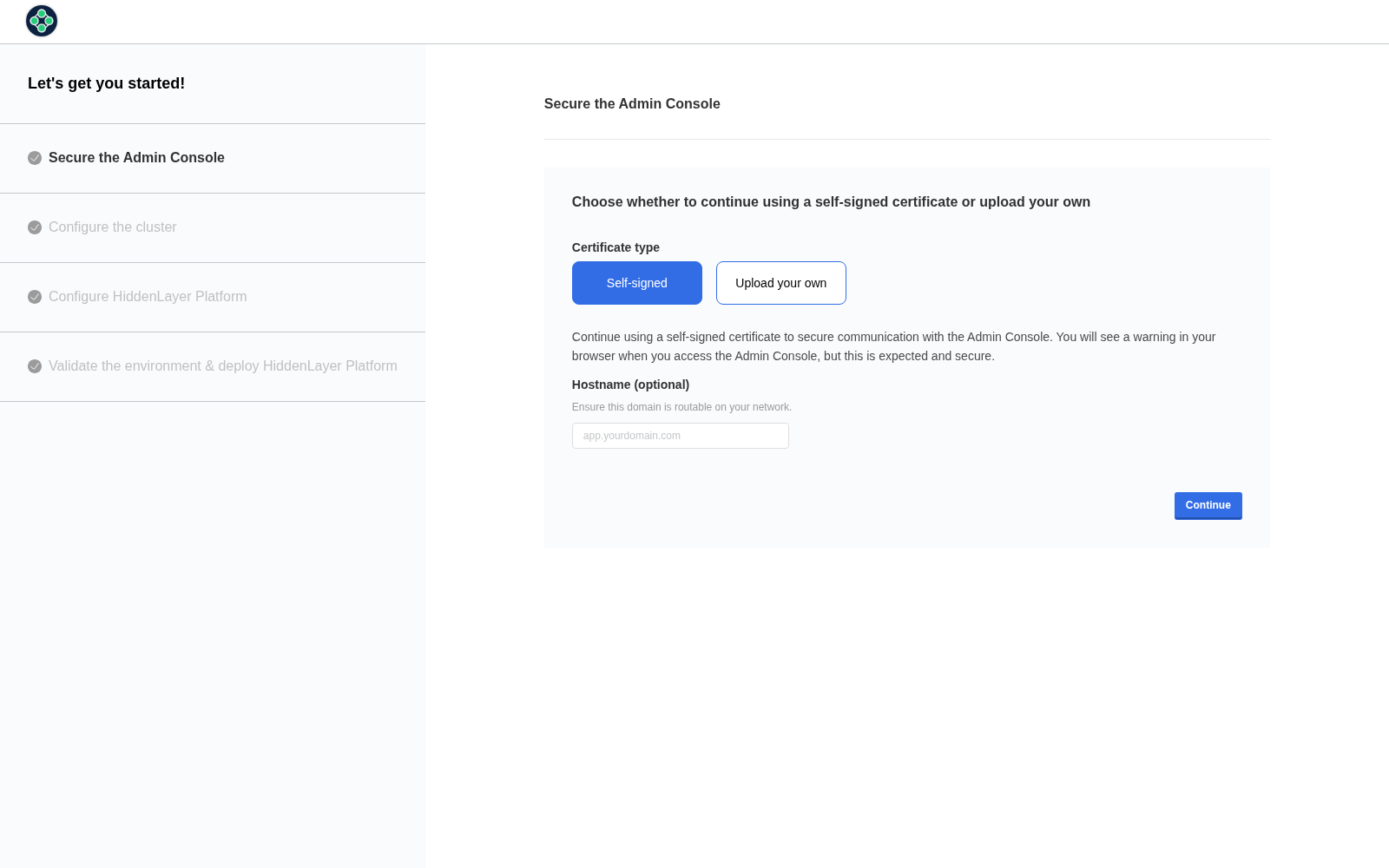

5. Choose what certificate to use, then click Continue.
   • Self-signed: The installer will create a private key and SSL certificate. Can be used for testing.
     • Note: Using a self-signed certificate may result in a web browser warning message when going to the Admin Console URL. You must select to proceed to the Admin Console. This process will vary by web browser.
   • Upload your own: You need to upload a private key and an SSL certificate. Recommended for production.
   • Hostname (optional)

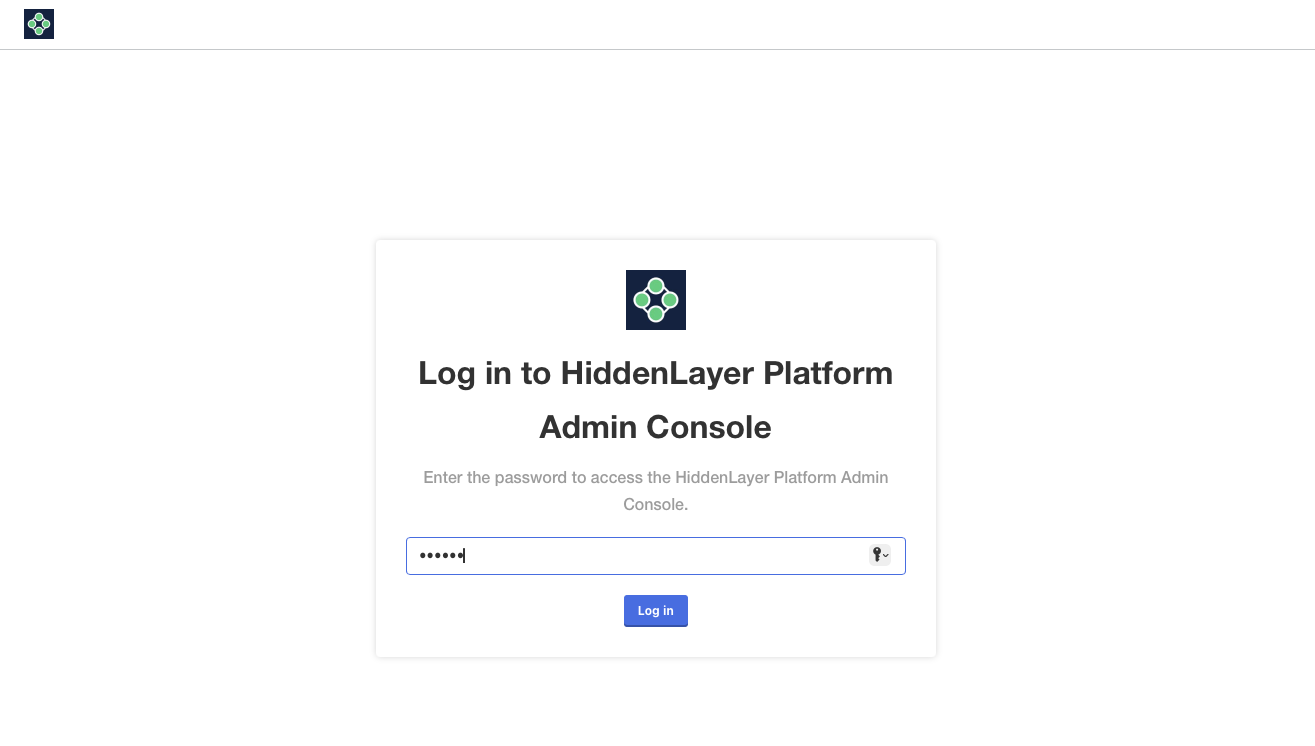

6. Log in to the Admin Console using the password you created.


​

Step 3: Configure the Nodes

• The initial deployment of the Admin Console includes one controller node. This was done when you deployed the Admin Console in the previous step.
• A GPU worker is required for production environments. A CPU-only option is possible, but not recommended for production environments due to significantly slower performance. Please contact your HiddenLayer representative for more information.

1. Make sure you are logged in to the Admin Console.

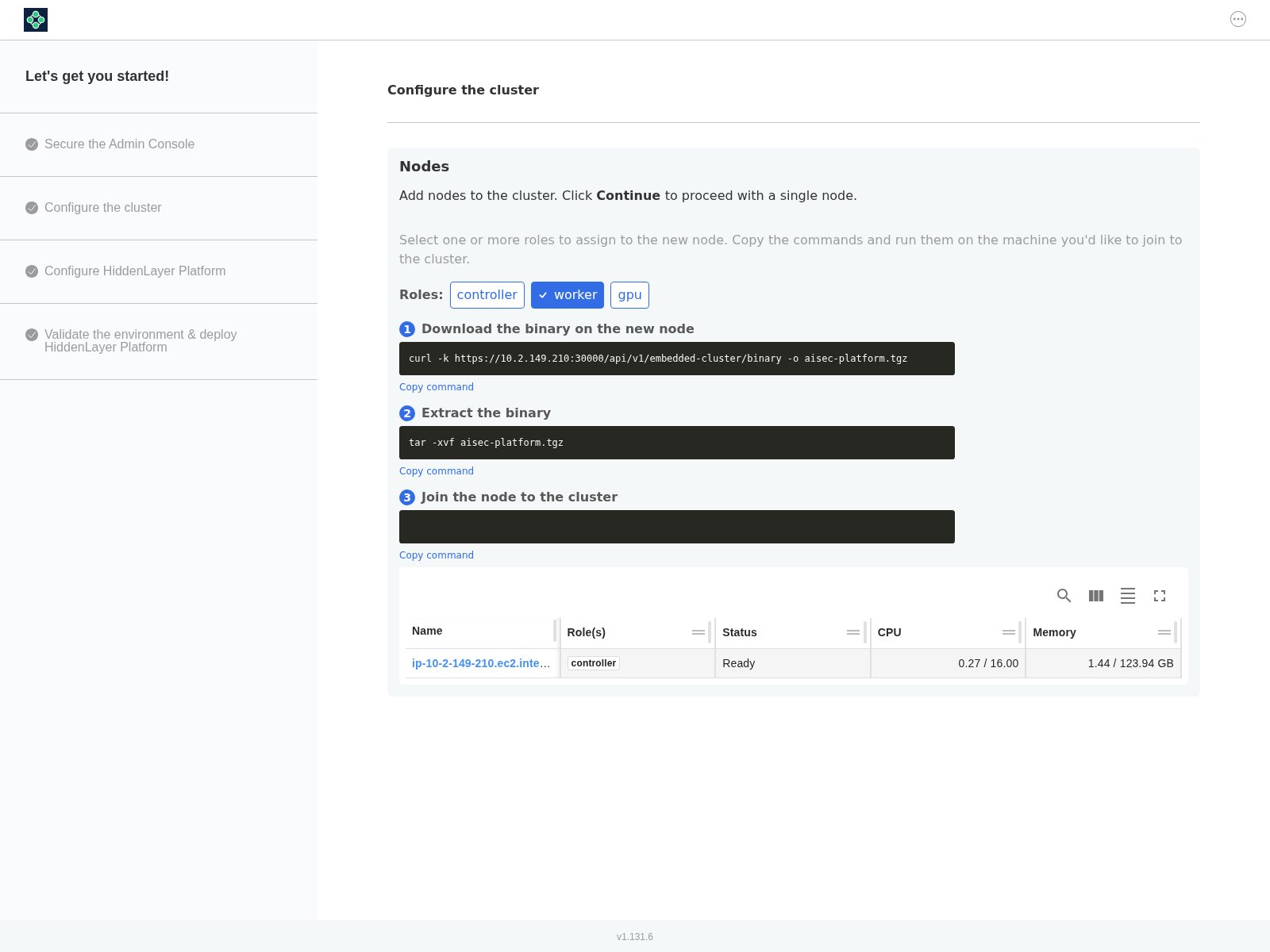

2. Add more controller, worker, and GPU worker nodes to meet your organization’s requirements.
   • Do this before configuring the AI Security Platform (which is the next step).
   Join every node now, not later.

   • The replica count cannot be raised after the first deploy.
   • One GPU worker is enough for the default single Runtime Security replica.
   • A cluster sized for more GPU workers must have them all present before the configuration form is submitted.
   Install only one role on each system.

   • A node joined under the wrong role cannot be relabeled. Run aisec-platform reset on the node, then join again with the correct role.

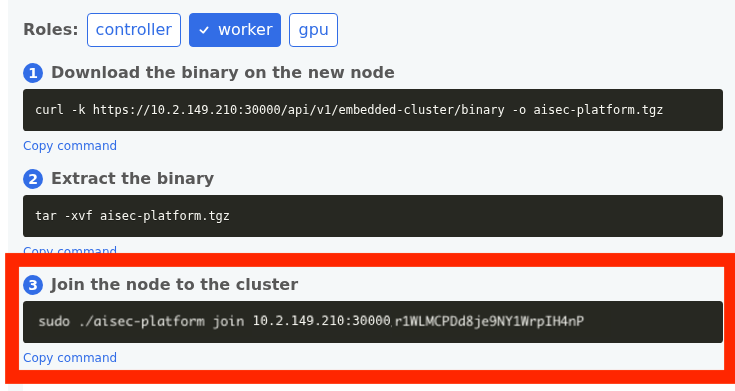

3. To add a controller, select controller and deselect all other options.
   • Use the commands on the systems to join the controller nodes.
4. To add a worker node, select worker and deselect all other options.
   • Use the commands on the systems to join the worker nodes.
5. To add a GPU worker node, select gpu and deselect all other options.
   • Use the commands on the systems to join the GPU worker nodes.
6. As nodes are added, they should appear in the nodes table, under the commands.

7. For RHEL and Rocky, expect an initial failure when joining a node.
   • This is because SELinux is set to Enforcing by default on RHEL and Rocky.
   • Note: The install must fail before running the fix commands.
   • The error message looks like the following:
     sudo ./aisec-platform join <controller-ip>:30000 <token>
     ✗  1 host preflight failed
     •  The selinux type context label for the embedded cluster binary directory are incorrect.
         Try running: sudo semanage fcontext -a -t bin_t "/var/lib/embedded-cluster/bin(/.*)?"
         && sudo restorecon -RvF /var/lib/embedded-cluster
     ERROR: unable to run join preflights: host preflight failures detected

   • The fix is to run the following commands after you receive the error.
     • These commands run as root sudo -i first, or prefix the command.
     semanage fcontext -a -t bin_t "/var/lib/embedded-cluster/bin(/.*)?"
     restorecon -RvF /var/lib/embedded-cluster

   • Then join the node by running the join command supplied in the Admin Console.

8. You will receive a Node is ready message when the node has successfully joined.
9. When you are done adding nodes, click Continue in the Admin Console.

​

Step 4: Configure the AI Security Platform

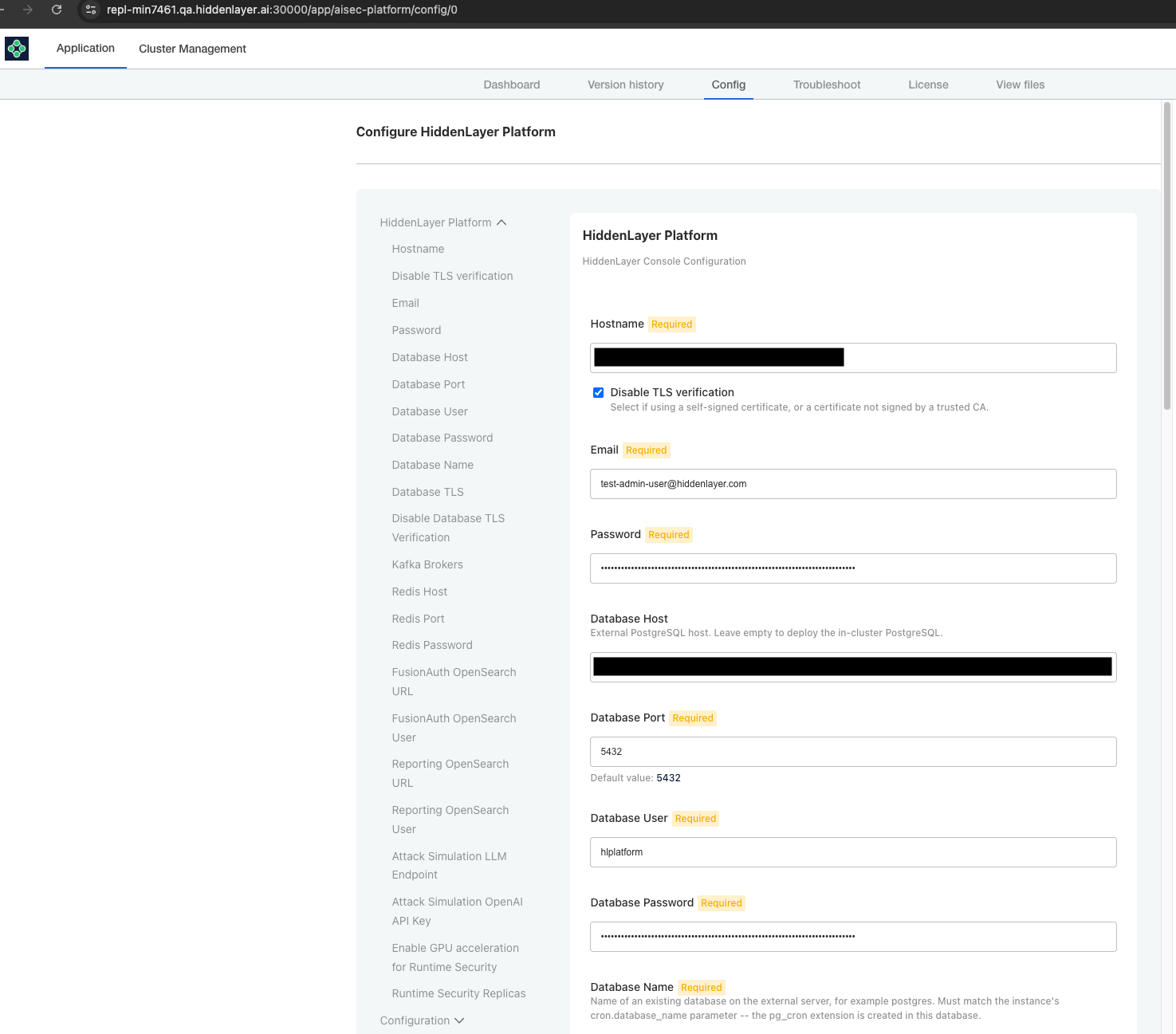

1. Make sure you are logged in to the Admin Console and you are on the Configuration page.
   • Enter your configuration and service information in the following steps.
2. Hostname
   • This the DNS hostname will be used to login to the Platform Console.

3. Disable TLS verification
   • Enable this option if using a self-signed certificate.
   • This option should not be enabled if using your own certificate.
4. Email
   • This email will be the user name to login to the Platform Console.
   • The initial user created is an Administrator for the Platform Console.
5. Password
   • This password is for the initial user login.
   • The password must be a minimum of 8 characters and a maximum of 256.

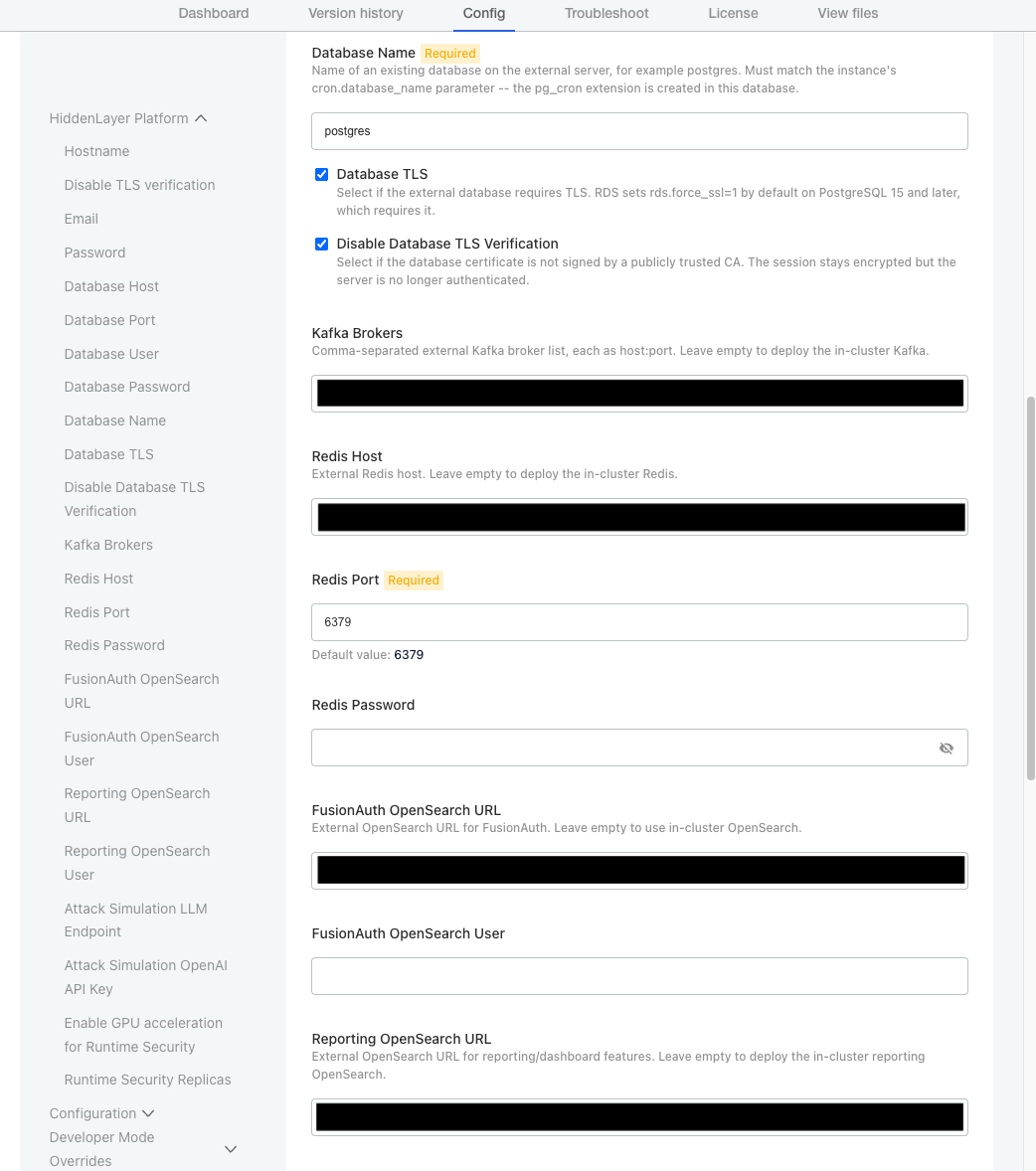

6. Database Host
   • Example: your.database.hostname.com
   • When you enter a hostname, other database fields display. Enter the required information.
     • Database Port
       • Example: 5432
     • Database User
     • Database Password

7. Kafka Brokers
   • The broker entries can be entered as comma separated values.
   • Example:
     broker-1.your.kafka.domain.com:9092,broker-2.your.kafka.domain.com:9092,broker-3.your.kafka.domain.com:9092

8. Redis Host
   • Primary endpoint address, port
9. FusionAuth OpenSearch URL
   • Example: https://your.opensearch.hostname.com:443
   • When you enter a URL, other OpenSearch fields display. Enter the required information.
     • OpenSearch User
     • OpenSearch Password
10. Reporting OpenSearch URL
    The Enable GPU acceleration for Runtime Security checkbox is selected by default and is intended for production deployments.

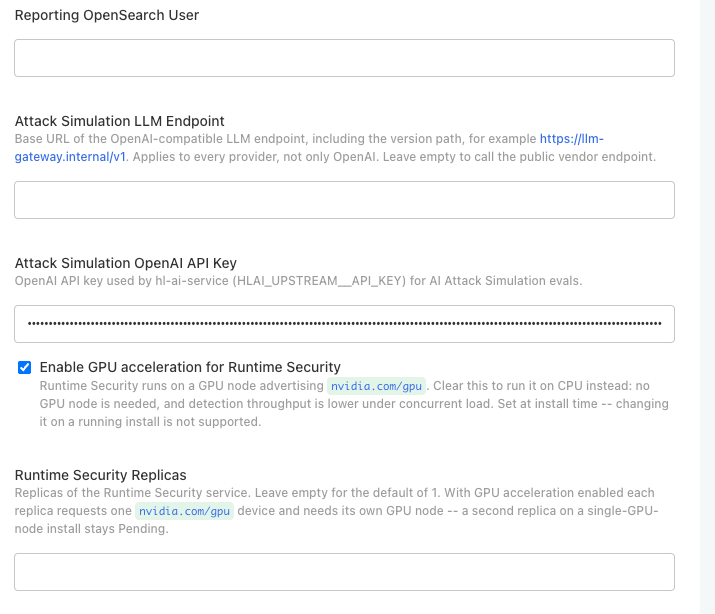

11. Attack Simulation OpenAI API Key
    • An OpenAI key, required for Attack Simulation evaluations.
    • The evaluation service calls api.openai.com directly.
    • Leave this blank on an isolated network (air-gapped).
12. Runtime Security GPU Replicas
    • Each replica claims a whole GPU device on its own node, so a second replica on a single-GPU install stays Pending.
    • Defaults to 1.
13. Click Continue.

​

Step 5: Validate the environment & deploy HiddenLayer Platform

• The Self-Hosted AI Security Platform will take time to complete installation after the package is deployed.

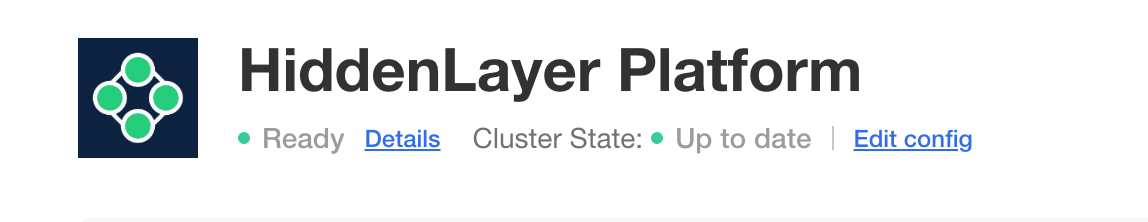

• The Platform Console will be accessible when the status changes to “Ready” as seen in the Admin Console.
