The HiddenLayer AI Security Platform has SAML application integrations to allow users to use single-sign-on for the Console to streamline the authentication process for their users. The Console supports SAML 2.0 and should work with any provider that supports SAML 2.0.
MFA is enforced by the configured identity provider (IdP) and is not managed separately by HiddenLayer.
Administrators can configure the Console login with their single sign-on Identity Provider (IdP).
In the Console, go to Settings > SSO. The Service Providers Details tab displays the data needed to establish a trusted connection between your IdP and HiddenLayer.
Expand: Service Providers Details tab descriptions
- Assertion Consumer Service (ACS) Callback URL: Endpoint on a service provider (SP) that receives and parses a SAML assertion made by the identity provider (IdP).
- Secondary Assertion Consumer Service (ACS) Callback URL: If you do not enable request signature validation in your IdP configuration, this URL is necessary to add as an allowable alternative ACS URL.
- Issuer: Unique string that identifies the provider issuing a SAML request.
- Metadata URL: Provides SAML metadata information, which can be used to configure the application in the IdP as an SP.
- Single Logout (SLO) URL: Single Logout (SLO) is a feature in federated authentication that allows end users to automatically sign out of their IdP session when they end their HiddenLayer session.
- Request Signing Certificate: The certificate used to sign SAML requests sent by the SP. If you choose to validate the request signature you will need to upload these contents into your SP.
After entering the HiddenLayer Service Provider Details into your IdP's integration configuration, take the details provided by your IdP and enter it into the Configure SAML SSO tab.
Expand: Configure SAML SSO tab descriptions
- IdP SSO URL: The address that an IdP supplies to redirect users for authentication.
- Issuer: Entity that manages, creates, and maintains identity information for principals. It also provides authentication services to relying parties.
- Managed Domains: Domains that are managed by the IdP.
- Provider Public Certificate: Used to verify the authenticity of requests and messages.
Enable the Is IdP Initiation Enabled checkbox to allow your IdP to initiate the SAML v2 flow.
Click Save.
This guide provides the following as examples:
Before creating an app integration in Microsoft Entra, you need the following information from HiddenLayer Support.
- Identifier (Entity ID) - this could be called the Issuer.
- Reply URL - this could be called the ACS or Callback URL.
- SP-initiated Callback URL
After receiving the SSO information from HiddenLayer, create an Enterprise Application in Azure.
In the Azure console, search for and select Enterprise Applications.
Click New application.

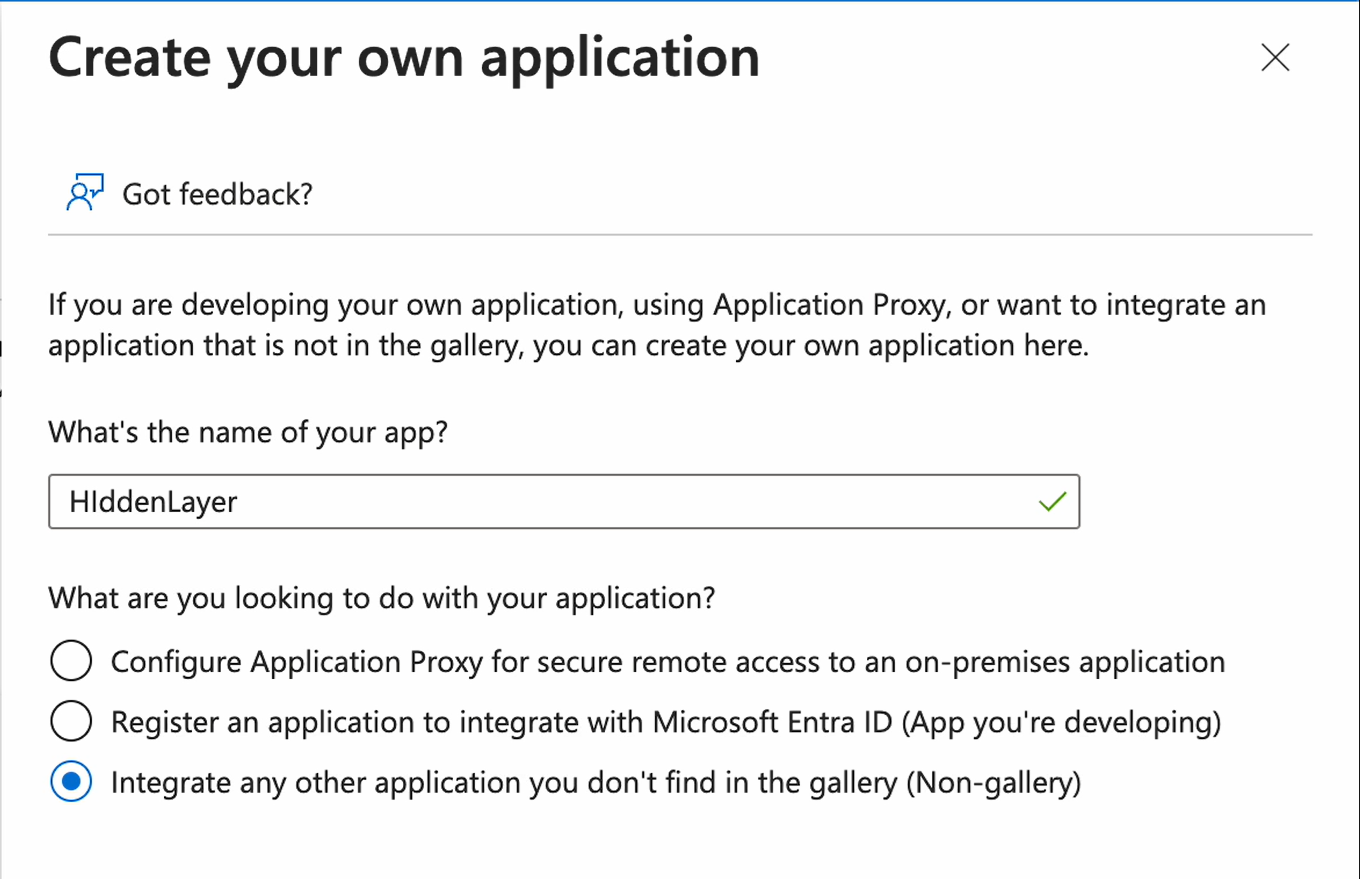

Click Create your own application.
Enter a name for the application. Example: HiddenLayer.
- Make sure Integrate any other application you don’t find in the gallery (Non-gallery) is selected.
Click Create. It may take a few moments to create the application. When the application is created, the Overview page displays.
Expand Manage, then select Single sign-on.
Click SAML.
For Basic SAML Configuration, click the Edit button.
Under Identifier (Entity ID), click Add identifier.
- Copy and paste the Issuer from HiddenLayer Console (see SSO Setup above).
Under Reply URL (Assertion Consumer Service URL), click Add reply URL.
- Copy and paste the Assertion Consumer Service (ACS) Callback URL from HiddenLayer into the field.
- Make sure Default is selected. When Entra initiates a sign-on, this is the URL to use.
- Under Reply URL, click Add reply URL to add a second URL.
- Copy and paste the Secondary Assertion Consumer Service (ACS) Callback URL you received from HiddenLayer into the field.
- Click Save.
Optional: Configure Sign-on URL (only required for SP-initiated SSO).
Note: Skip this step if you only plan to use IDP-initiated SSO. SP-initiated flows will fail without a populated Sign-on URL.
For the Sign on URL, enter the SP-initiated Callback URL for your region.
- US region: https://console.us.hiddenlayer.ai/
- EU region: https://console.eu.hiddenlayer.ai/
Click Save.

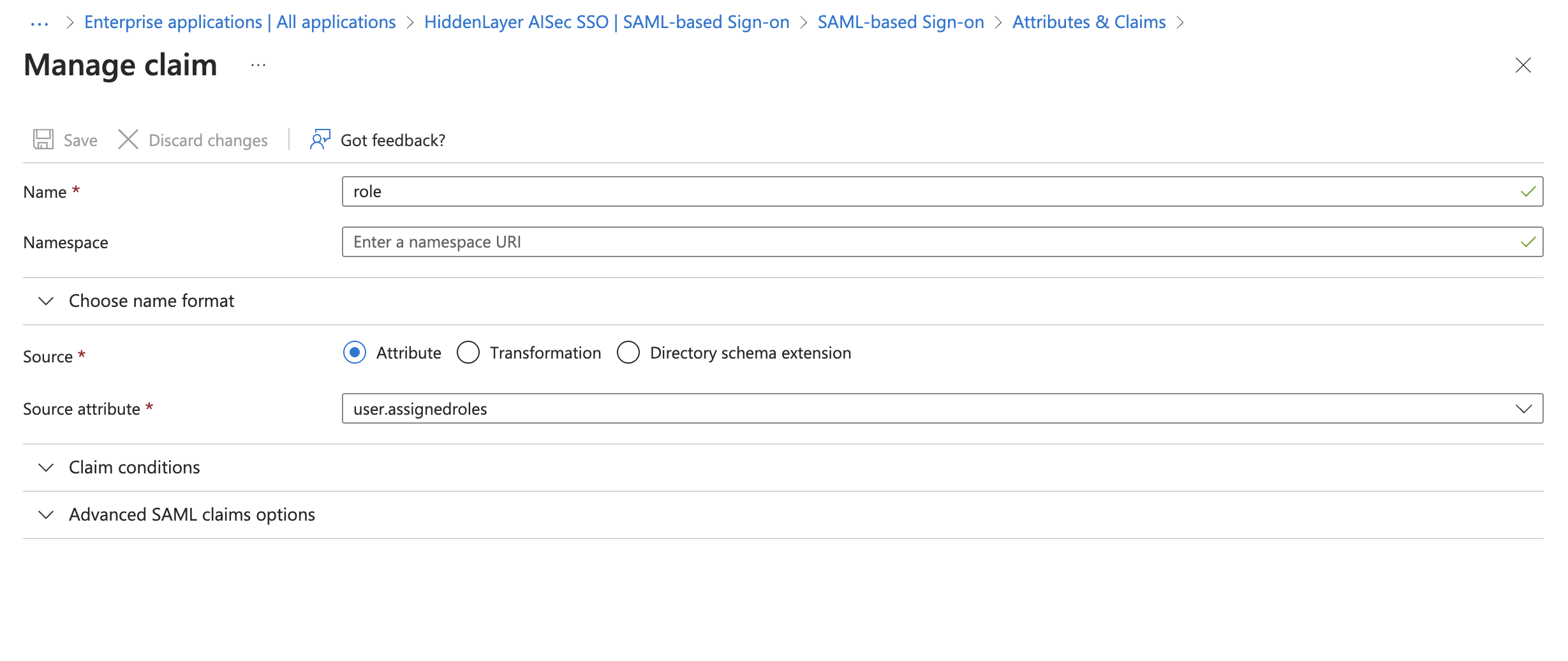

For user-based role assignments, edit the Attributes & Claims. Make sure you are on the Manage > Single sign-on page for the application.
- For Attributes & Claims, click the Edit button.
- Click Add new claim.
- For Name, enter
role. - For Source attribute, select
user.assignedroles. - Leave the namespace blank.
- Click Save.
After the Enterprise Application is created, be sure to assign users or groups to the application.
Go to Microsoft Entra ID.
Under Manage, select App registrations.
Select your HiddenLayer application. You might need to click the All applications tab.
In your HiddenLayer application, select Manage > App roles.
Click Create app role.
Create separate app roles for Org Admin, Analyst, and Viewer.
Viewer
- Display name: Viewer
- Allowed member types: Users/Groups
- Value: viewer
- Description: HiddenLayer Viewer Role
Analyst
- Display name: Analyst
- Allowed member types: Users/Groups
- Value: analyst
- Description: HiddenLayer Analyst Role

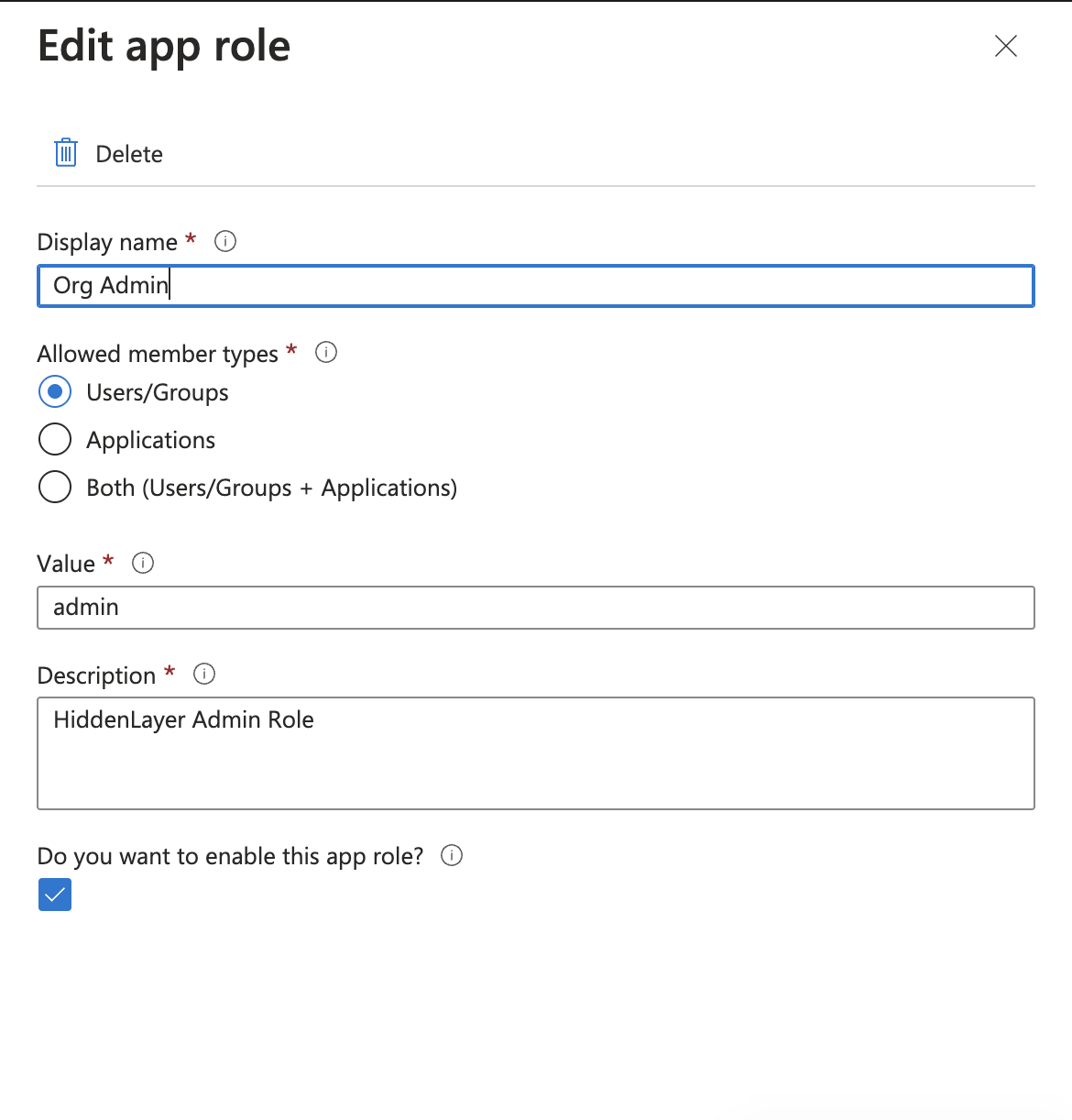

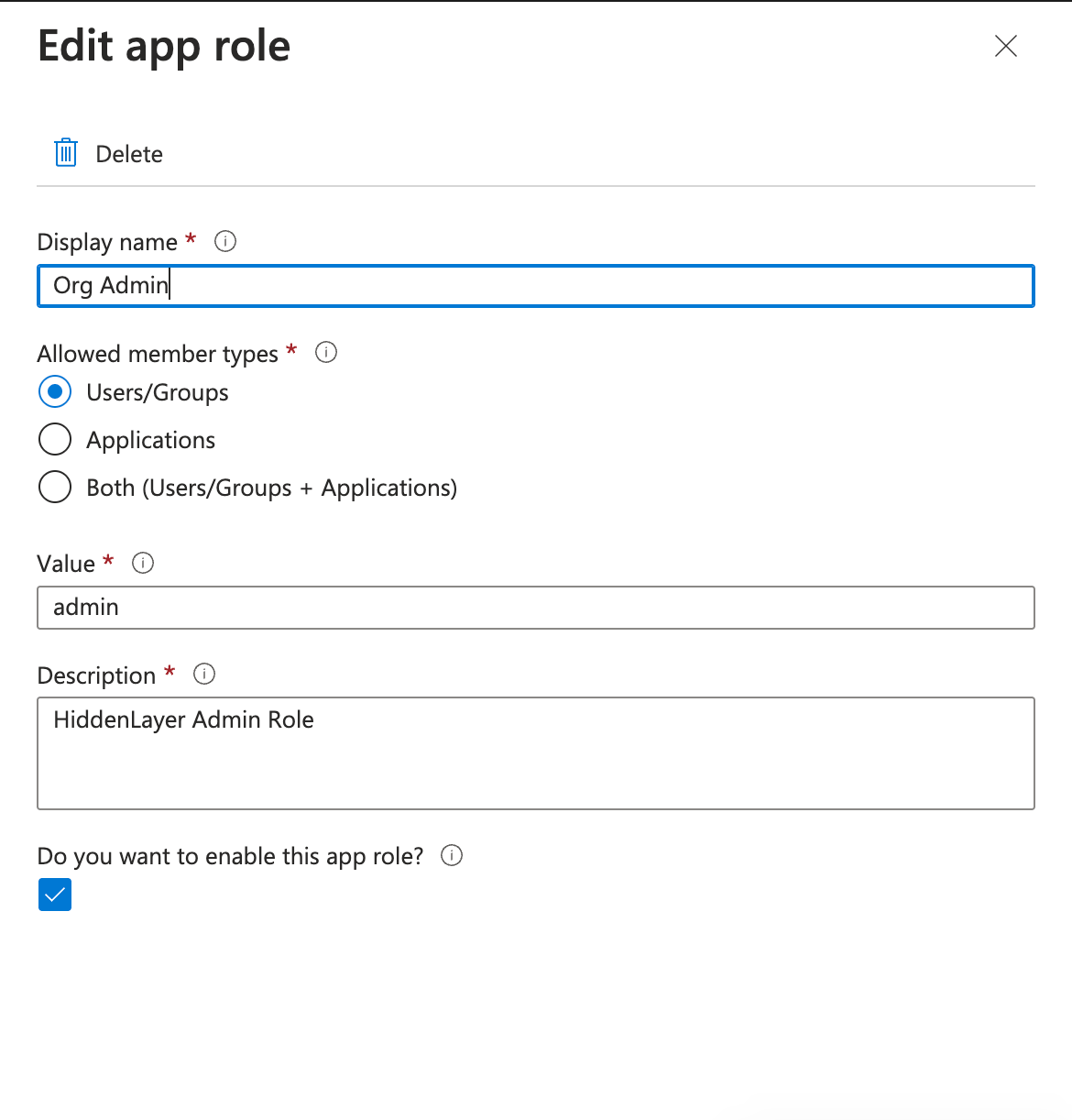

Org Admin
- Display name: Org Admin
- Allowed member types: Users/Groups
- Value: admin
- Description: HiddenLayer Admin Role
Click Apply to save each app role.
Assign your users to these roles, as needed.
In the HiddenLayer Console, copy and paste the following information on the Configure SAML SSO tab on the Settings > SSO page.
From Set up HiddenLayer (or the name you gave the application):
- Login URL
- Microsoft Entra Identifier
- Logout URL
From SAML Certificates:
- Certificate (Base64)

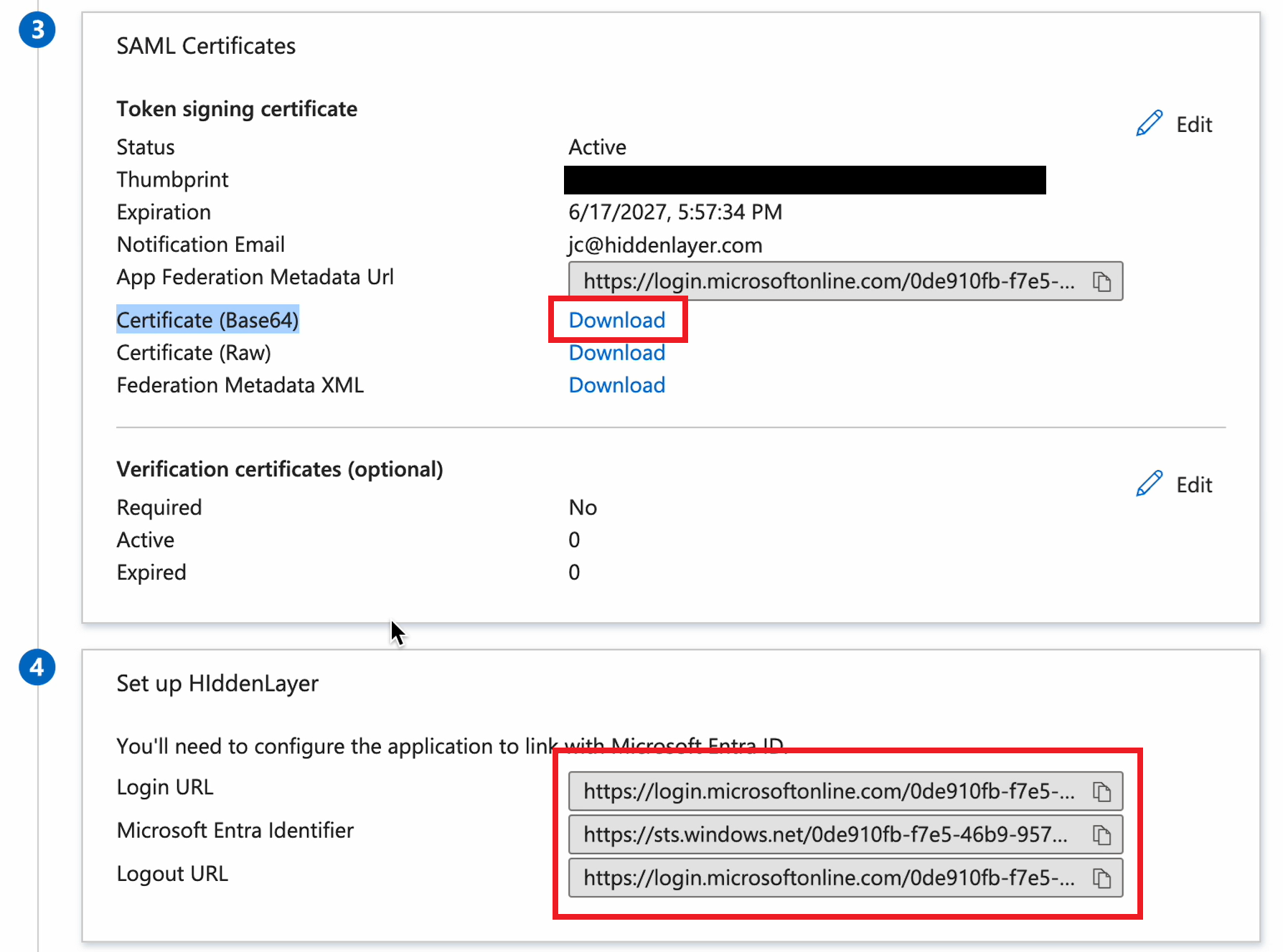

The following example images show where to find the above information in the Azure console.
Before creating an app integration in Okta, you need the following information from Settings > SSO > Configure SAML SSO in the HiddenLayer Console:
- Single sign-on URL - This could be called the Secondary Assertion Consumer Service (ACS) Callback URL.
- Audience URI (SP Entity ID) - This could be called the Issuer.
- Signature Certificate - This could be called the Request Signing Certificate.
After receiving the SSO information from HiddenLayer, create an application integration in Okta.
In the Okta console, select Applications > Applications.
Click Create App Integration.
For Sign-in method, select SAML 2.0.
Click Next.
Enter a name for the integration, then click Next.
- Optionally, upload an icon for the app.

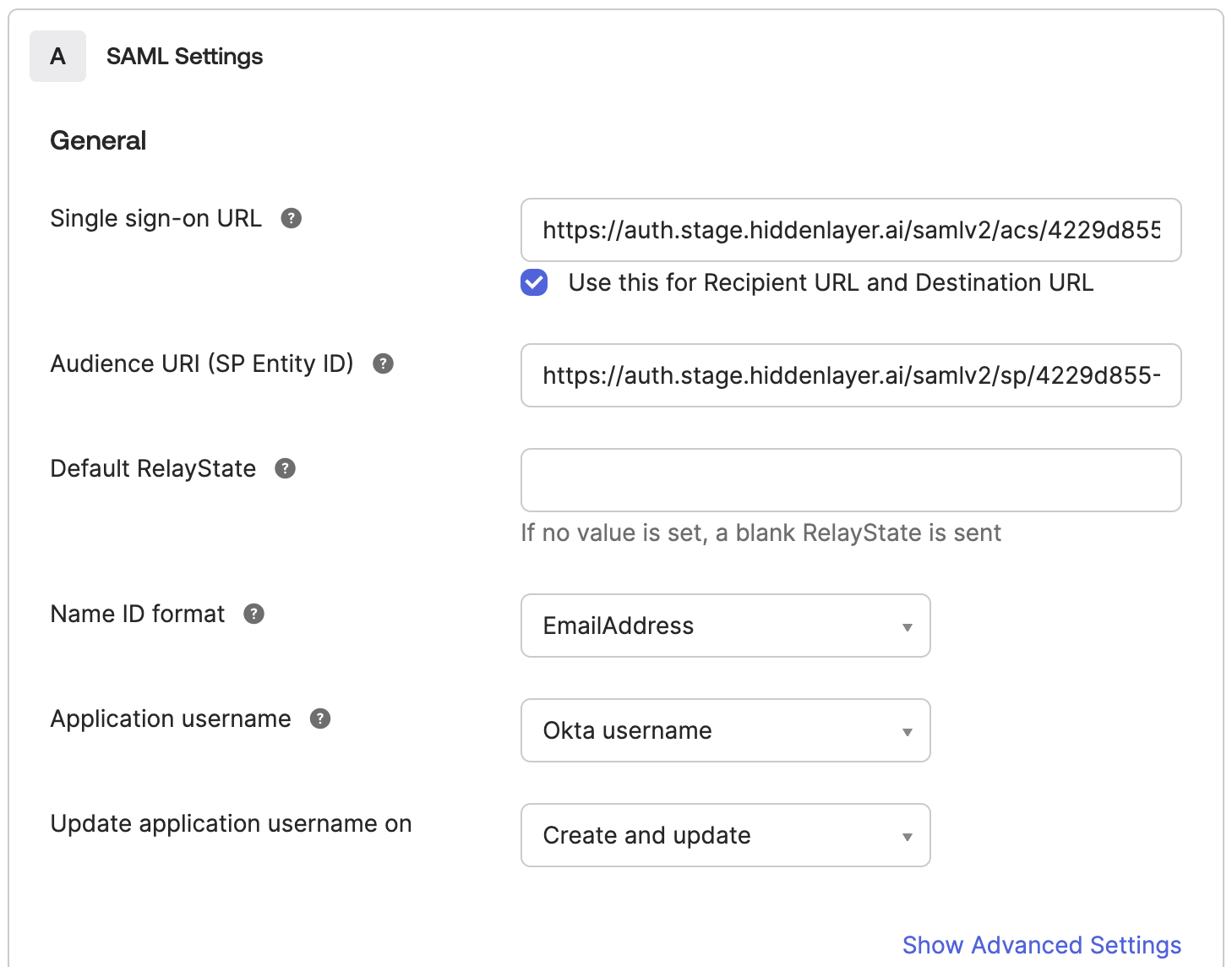

Enter the SAML settings for the integration.
Enter the Single sign-on URL provided by HiddenLayer.
- This is the Secondary Assertion Consumer Service (ACS) Callback URL.
Leave the box checked to “Use this for Recipient URL and Destination URL.”
Enter the Audience URI (SP Entity ID) provided by HiddenLayer.
- This is Issuer.
Set Name ID format to “EmailAddress.”

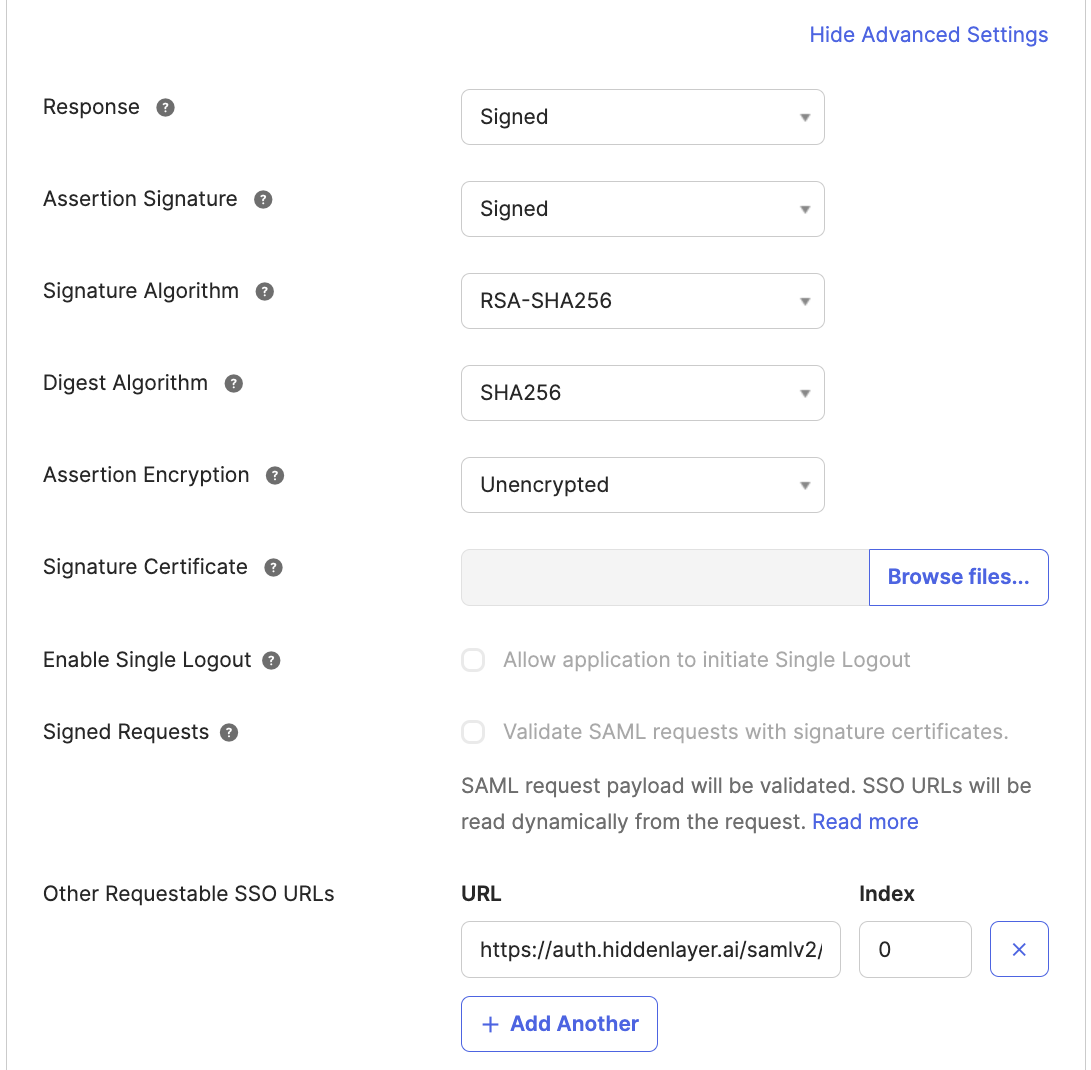

Click Show Advanced Settings.
Set up SP Request validation by certificate:

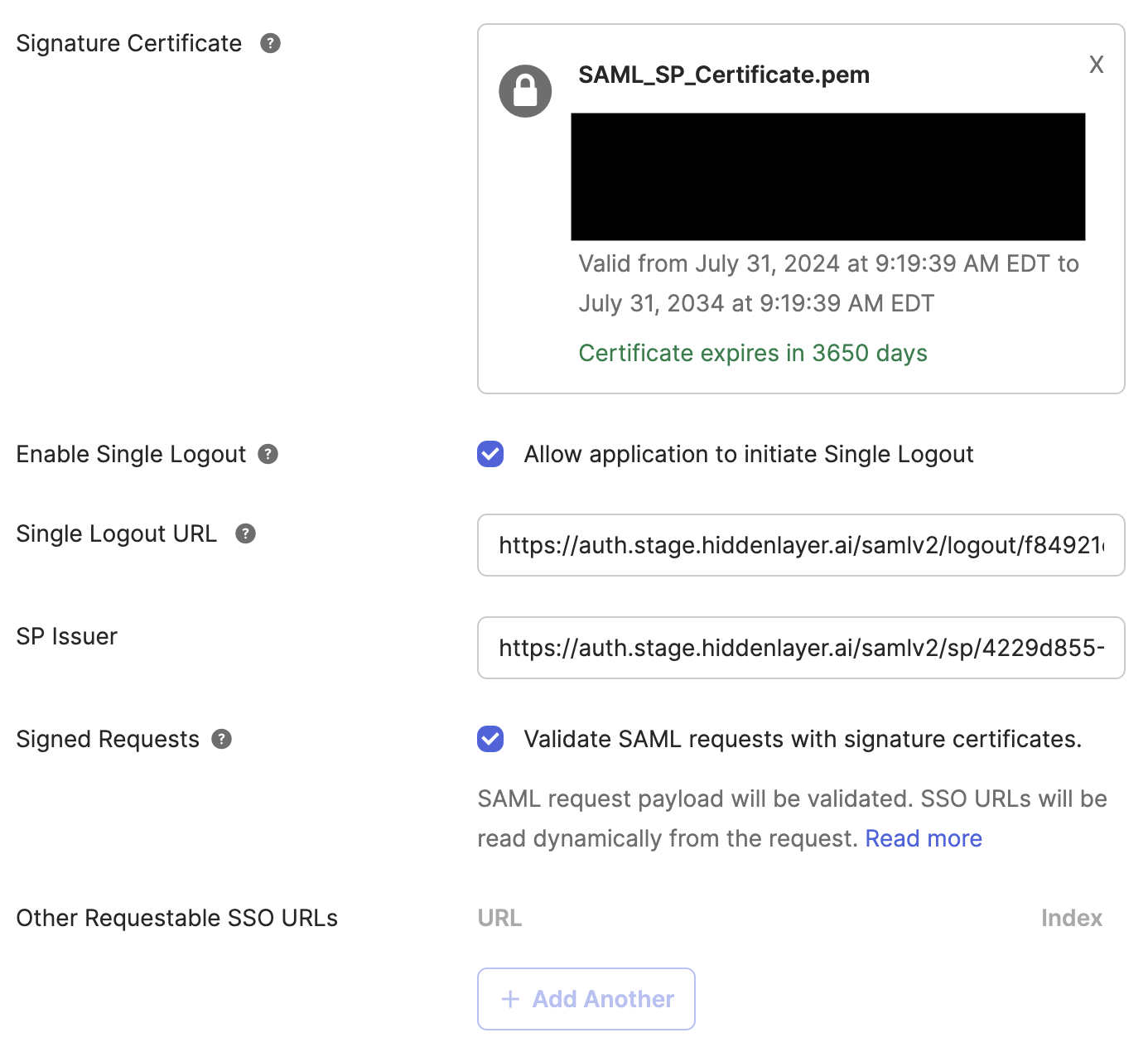

For the Signature Certificate, do the following:
- Create a text file with a PEM extension (.pem).
- Copy and paste the Request Signing Certificate from the HiddenLayer Console.
- Save the PEM file.
- Upload the file to Okta.
Under Signed Requests, check “Validate SAML requests with signature certificates.”
Alternative approach: If use of the request signing certificate is not desired for some reason, the service provider can be authenticated by callback URL. To do this, use a “Requestable SSO URL” as follows. (Note this will be disabled if certificate validation is set.)
For Other Requestable SSO URLs, click Add Another.
Enter the Other Requestable SSO URL provided by HiddenLayer.
- This could be called the Secondary Assertion Consumer Service (ACS) Callback URL.
Enter zero for Index.
Click Next.
Optionally, under Help Okta support understand how you configured this application, select It’s required to contact the vendor to enable SAML. This is not required.
Click Finish. The app integration is created and the SAML 2.0 settings display.

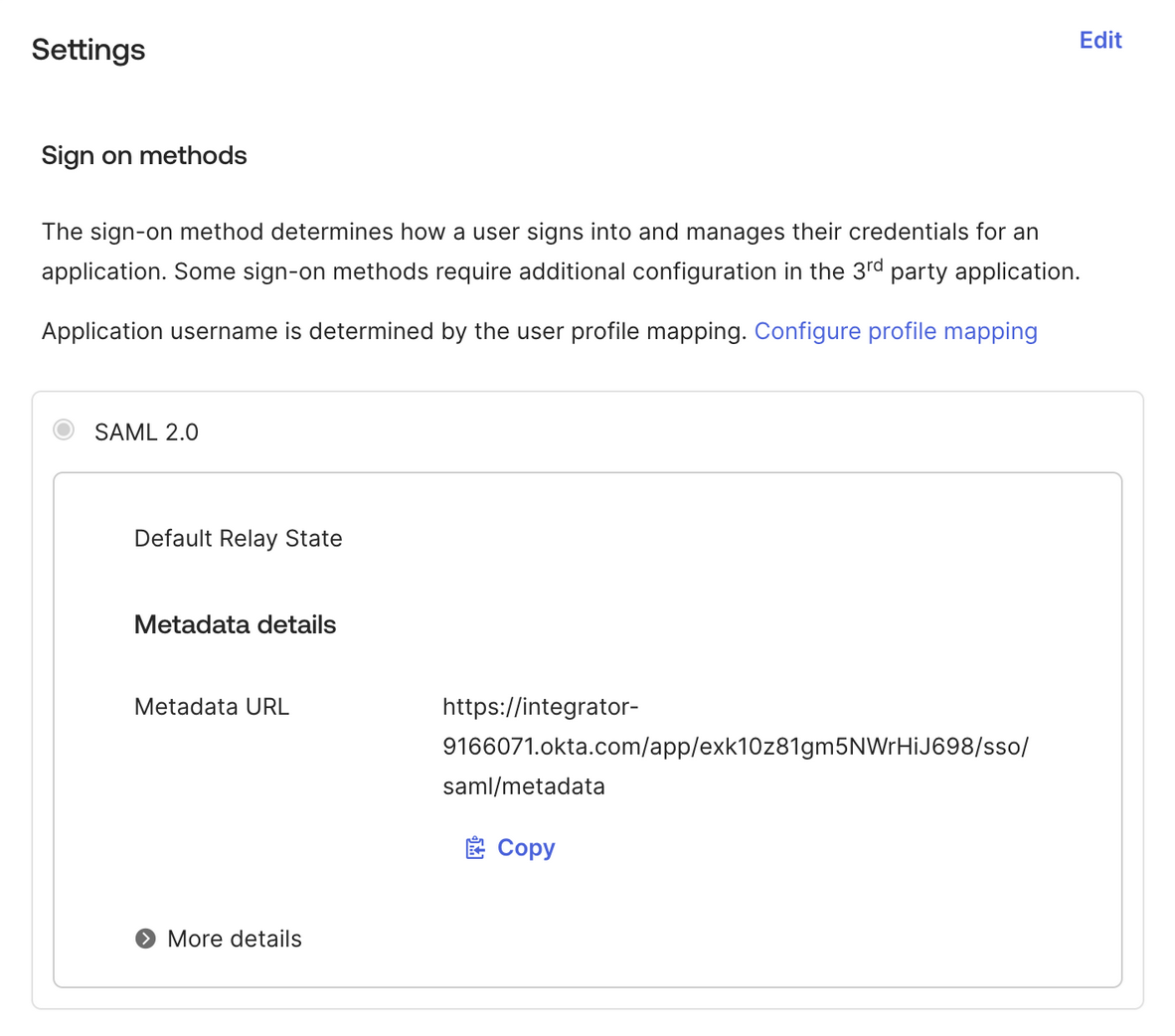

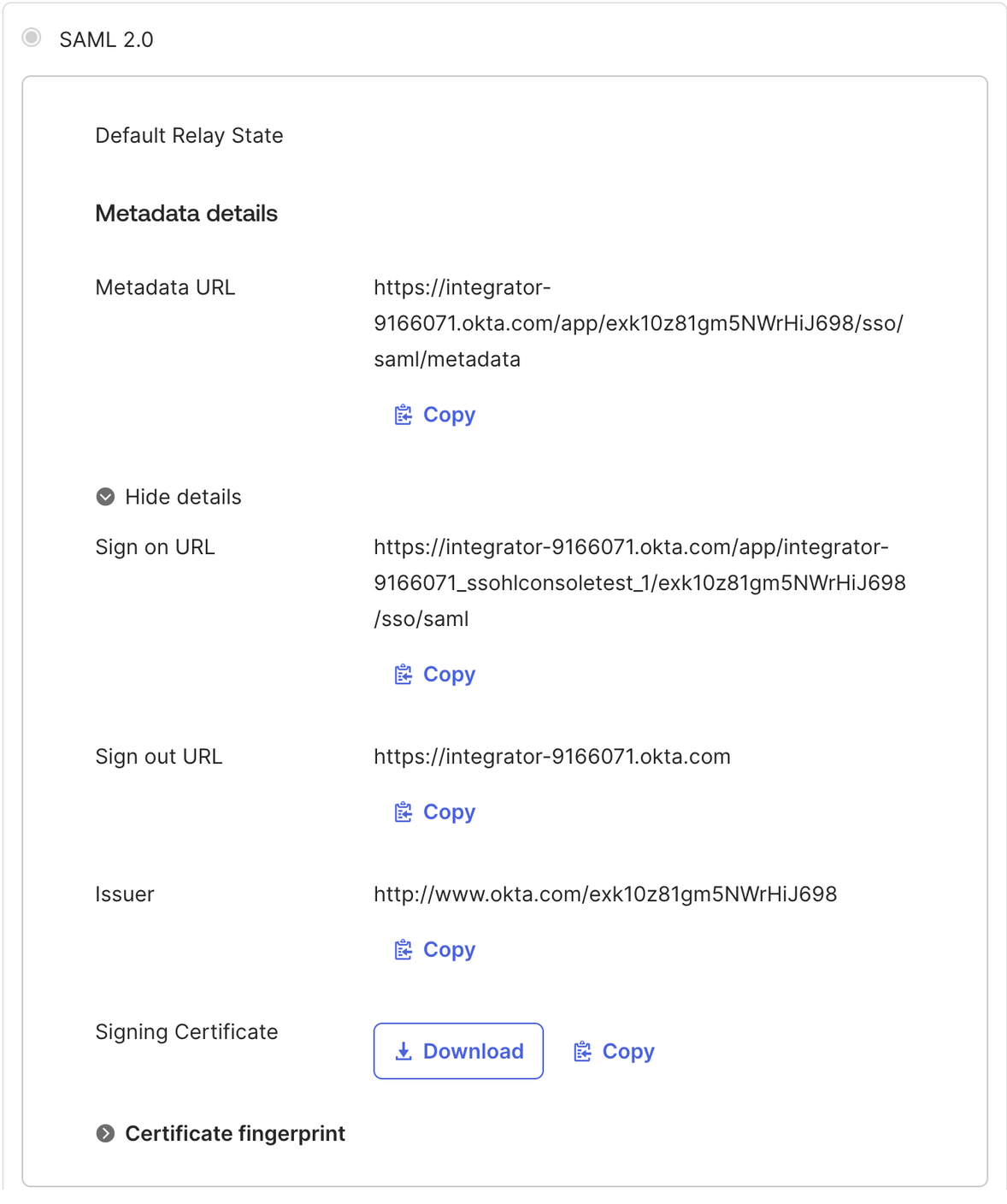

Click on the Sign On tab and under SAML 2.0 click More details. Copy the following:
- Sign on URL
- Issuer
- Signing Certificate
Paste the above information to the Configure SAML SSO tab on the SSO page in the HiddenLayer Console.
Sign On URL maps to IdP SSO URL
Issuer maps to Issuer
Signing Certificate maps to Provider Public Certificate
- Ensure that -----BEGIN CERTIFICATE----- and -----END CERTIFICATE----- are present when pasting the certificate
After the Okta app integration is created, be sure to assign users or groups to the app integration.

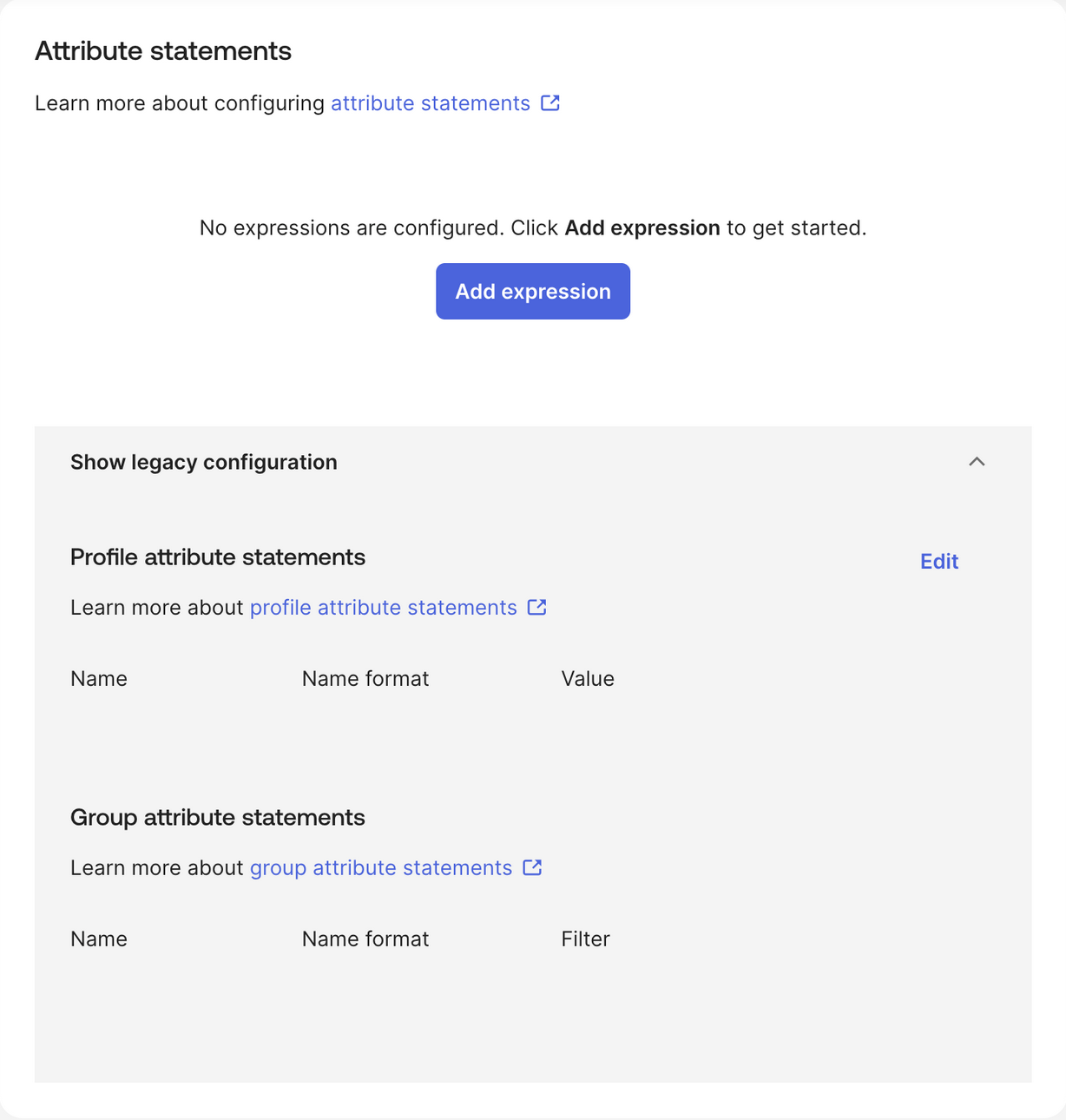

The following settings are for Okta attribute statements, which are SAML assertion components used to pass user-specific data (like email or roles) from Okta to a SAML application during authentication.
Under Attribute Statements (optional), add a firstName.
- For Name, enter firstname.
- For Name format, select Basic.
- For Value, select
user.firstName.
Under Attribute Statements (optional), add a
lastName.- For Name, enter lastname.
- For Name format, select Basic.
- For Value, add the values that match your environment. Example:
user.lastName.
Under Attribute Statements (optional), add an
email.- For Name, enter email.
- For Name format, select Basic.
- For Value, add the values that match your environment. Example:
user.email.
Under Attribute Statements (optional), add
Roles.- For Name, enter Roles.
- For Name format, select Basic.
- For Value, add
appuser.roles.
You can configure the HiddenLayer OKTA application to pass all groups for role-based access control (RBAC).
Edit the HiddenLayer User Profile in OKTA.

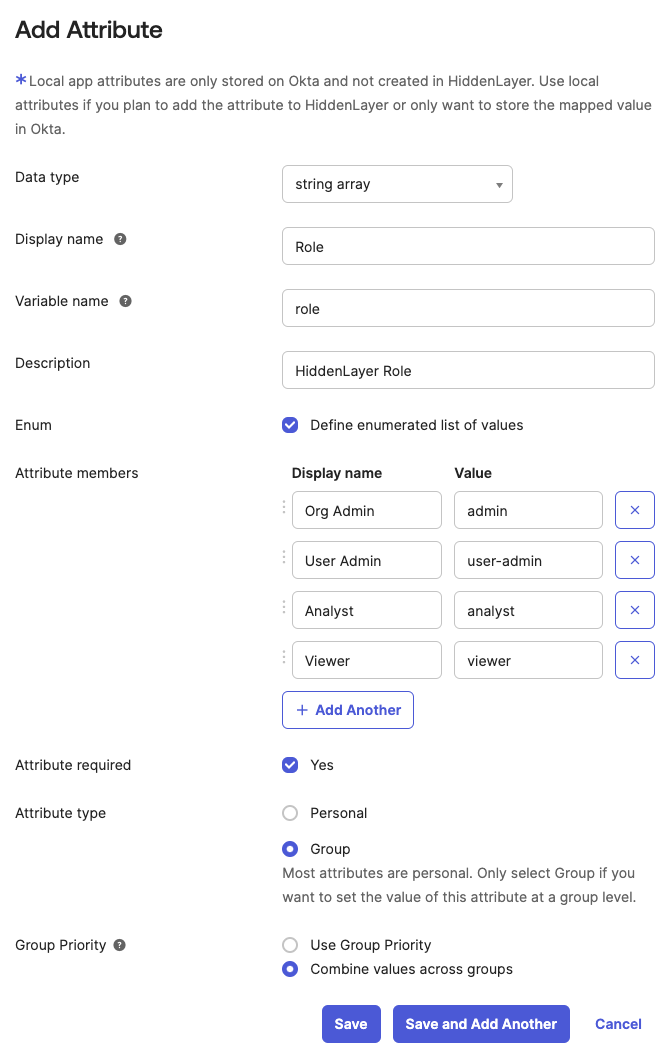

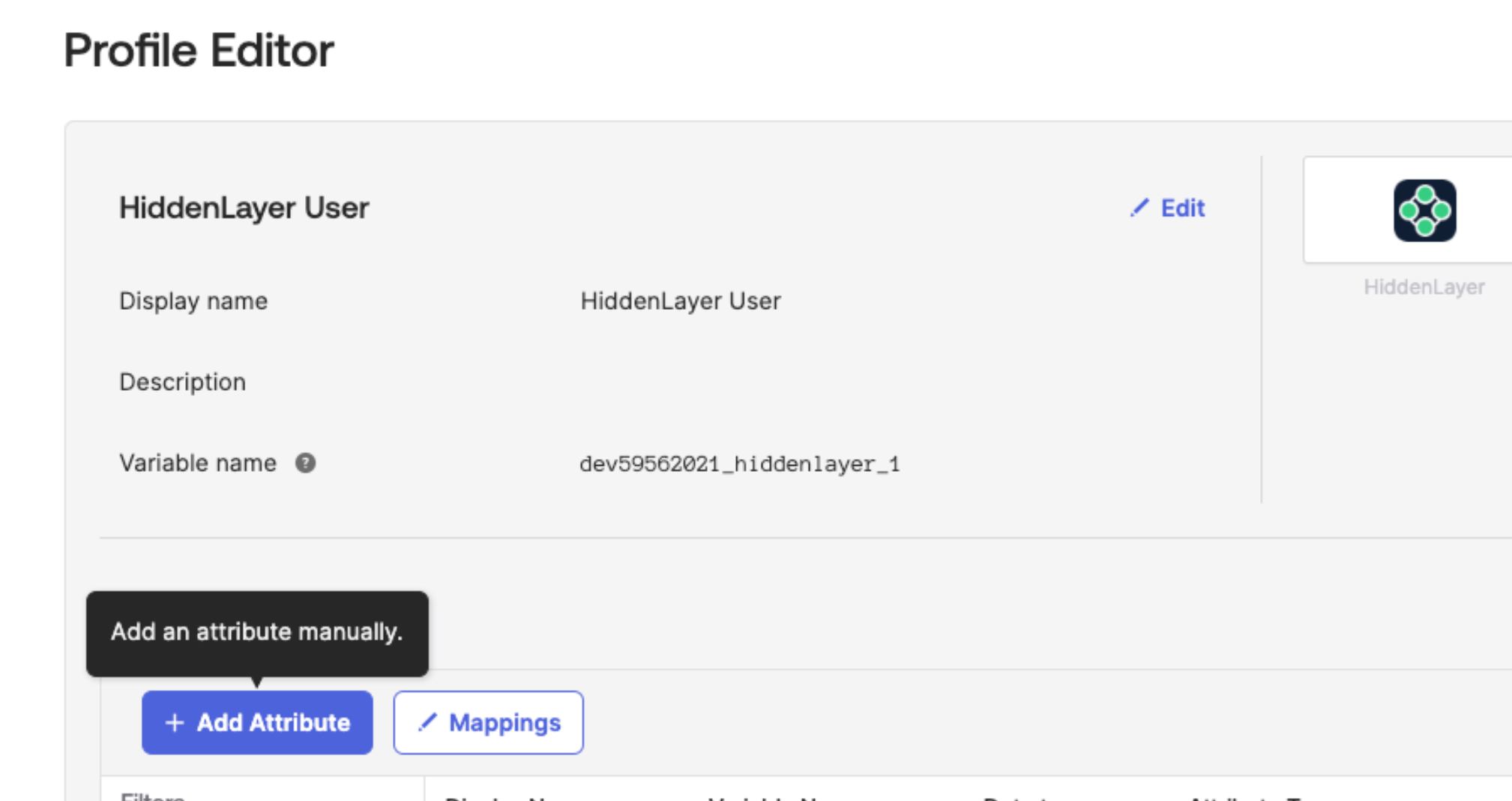

Go to Directory > Profile Editor, then click Add Attribute.
Configure the Attribute as follows. Also see the image below. For more information about custom attributes in an Okta user profile, see Okta's documentation.
Data type: string array
Display name: Role
Variable name: role
Description: HiddenLayer Role
Enum: Enable Define enumerated list of values
Attribute Members: Add the following Display name : Value
- Org Admin : admin
- User Admin : user-admin
- Analyst : analyst
- Viewer : viewer
Attribute required: Yes
Attribute type: Group
Group Priority: Combine values across groups
Click Save.

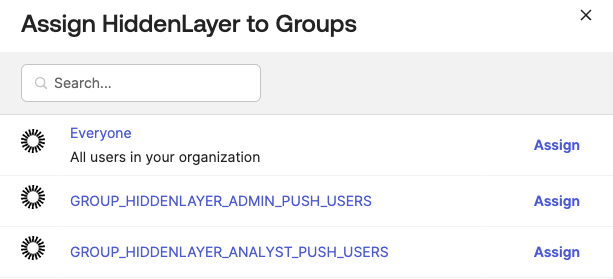

Assign groups to the Application.

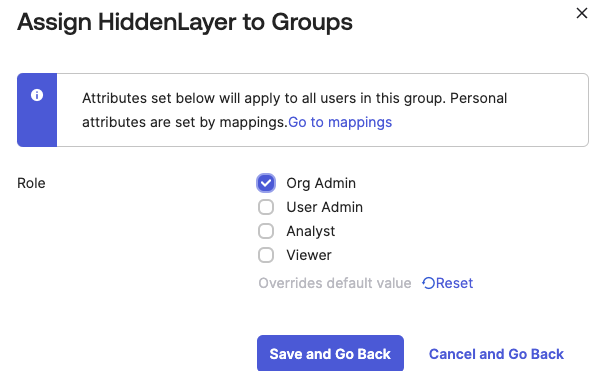

Specify the HiddenLayer Role to assign to the group.
